Read the analysis and Simulation

Exact, measured or estimated — each figure says which.

1Press Run Analysis. The panel on the right shows the model in figures and what the compiler found.
2Open Simulation. Overview gives the model and the whole run: steps, duration, energy, cost, CO₂.
3Per Layer shows where the parameters and the compute are; Memory what one training step holds, and whether it fits; Optimization the same design at each precision.

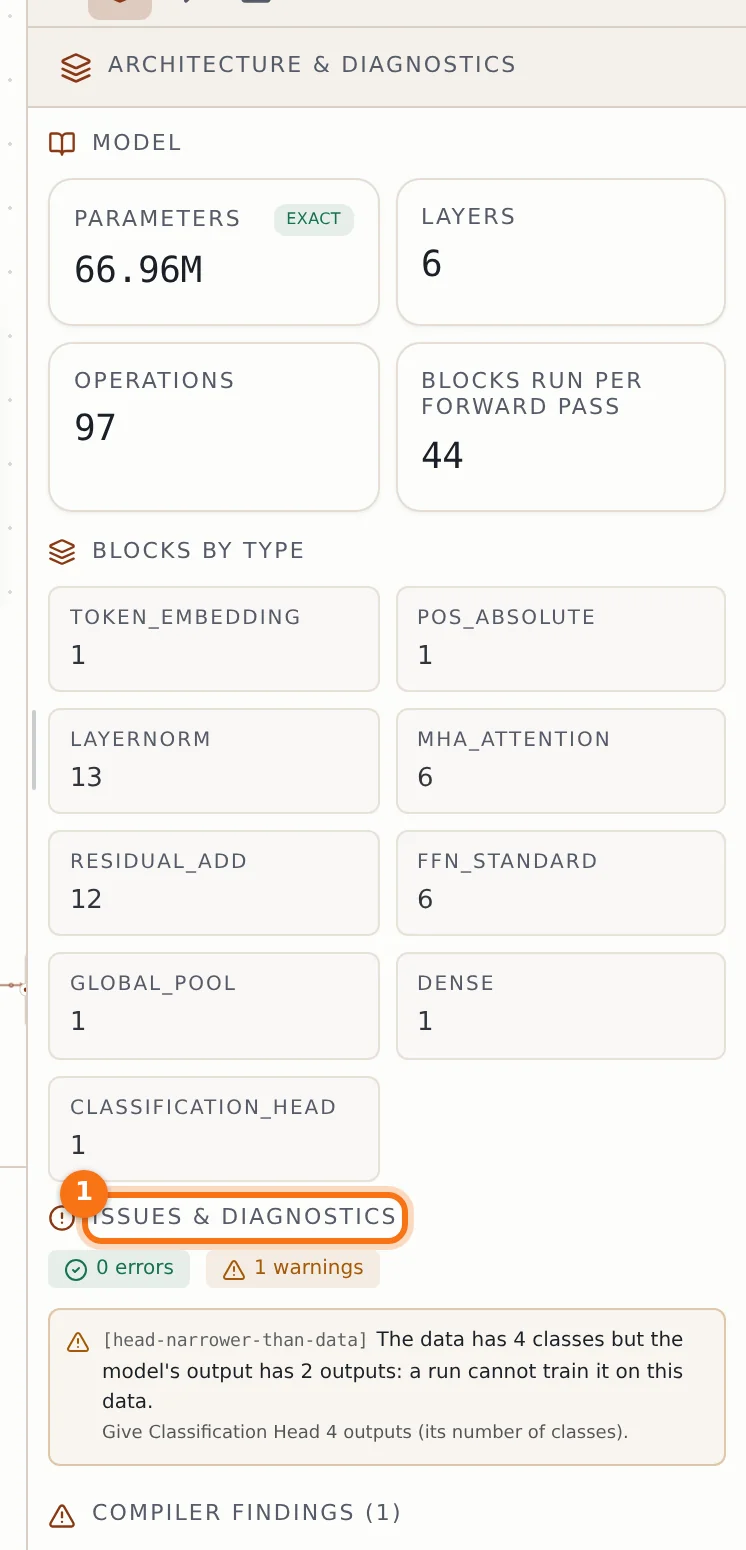

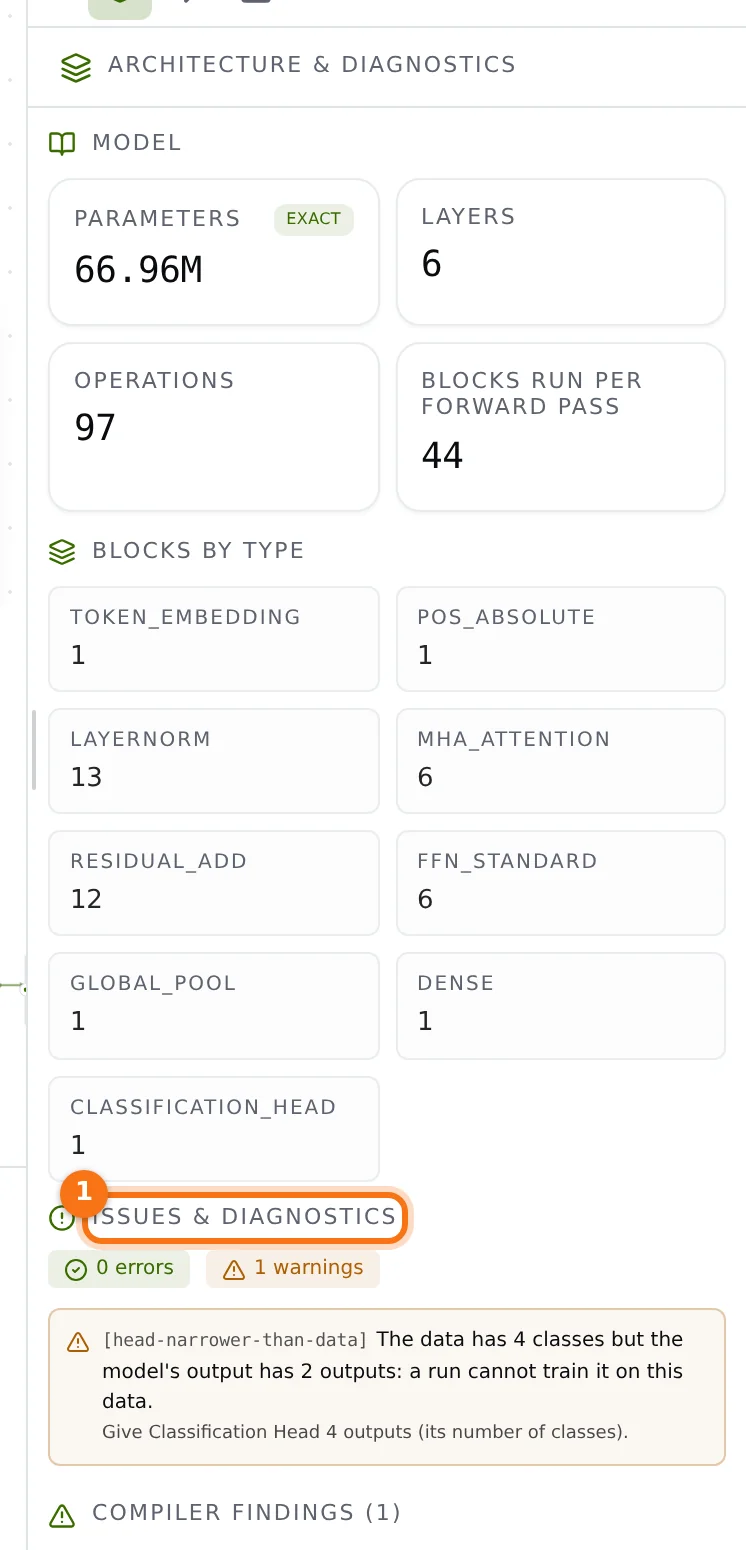

The analysis panel: parameters and findings marked — 1 — exact: counted from the design. 2 — what the compiler found, and what to do about it.

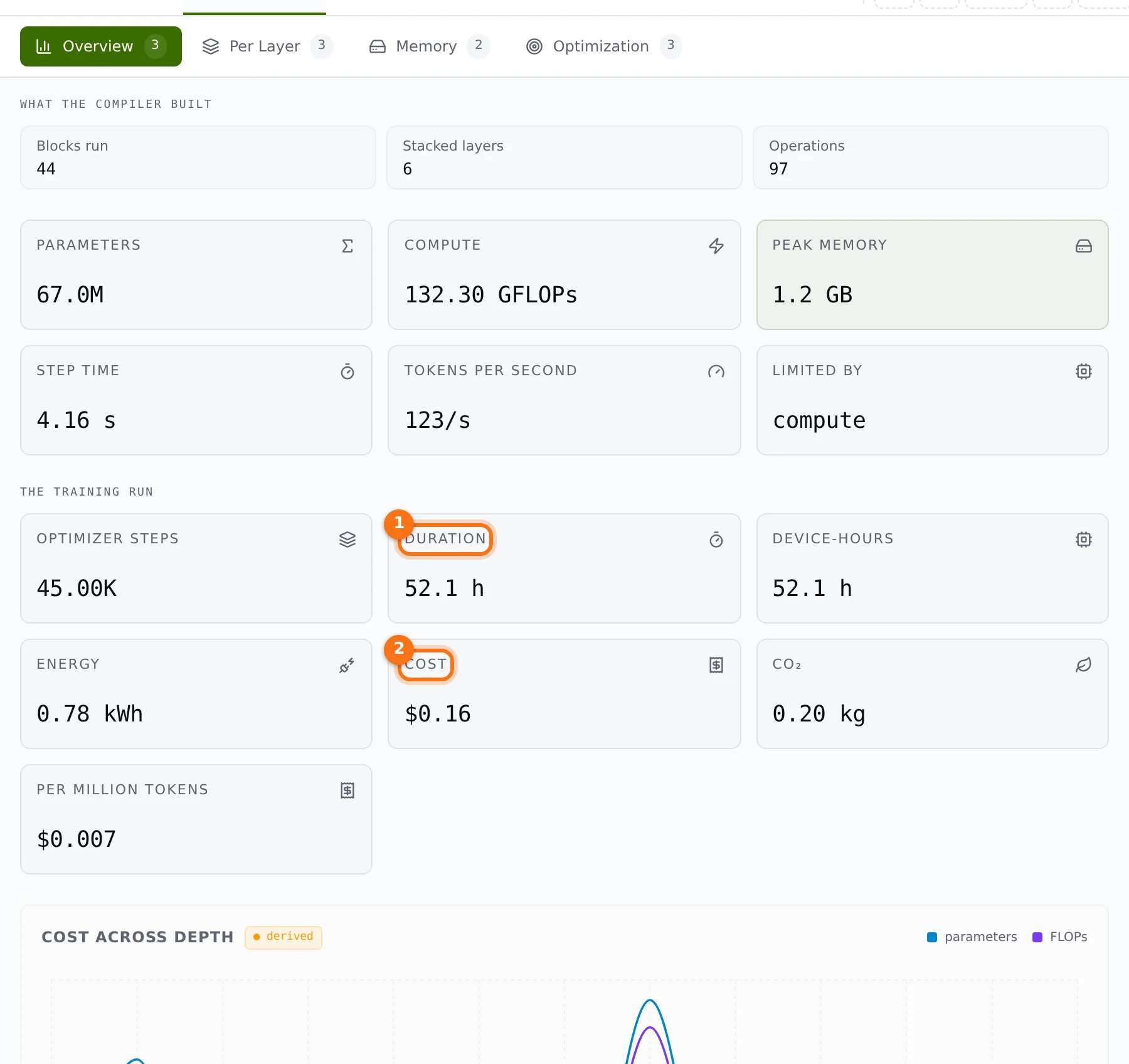

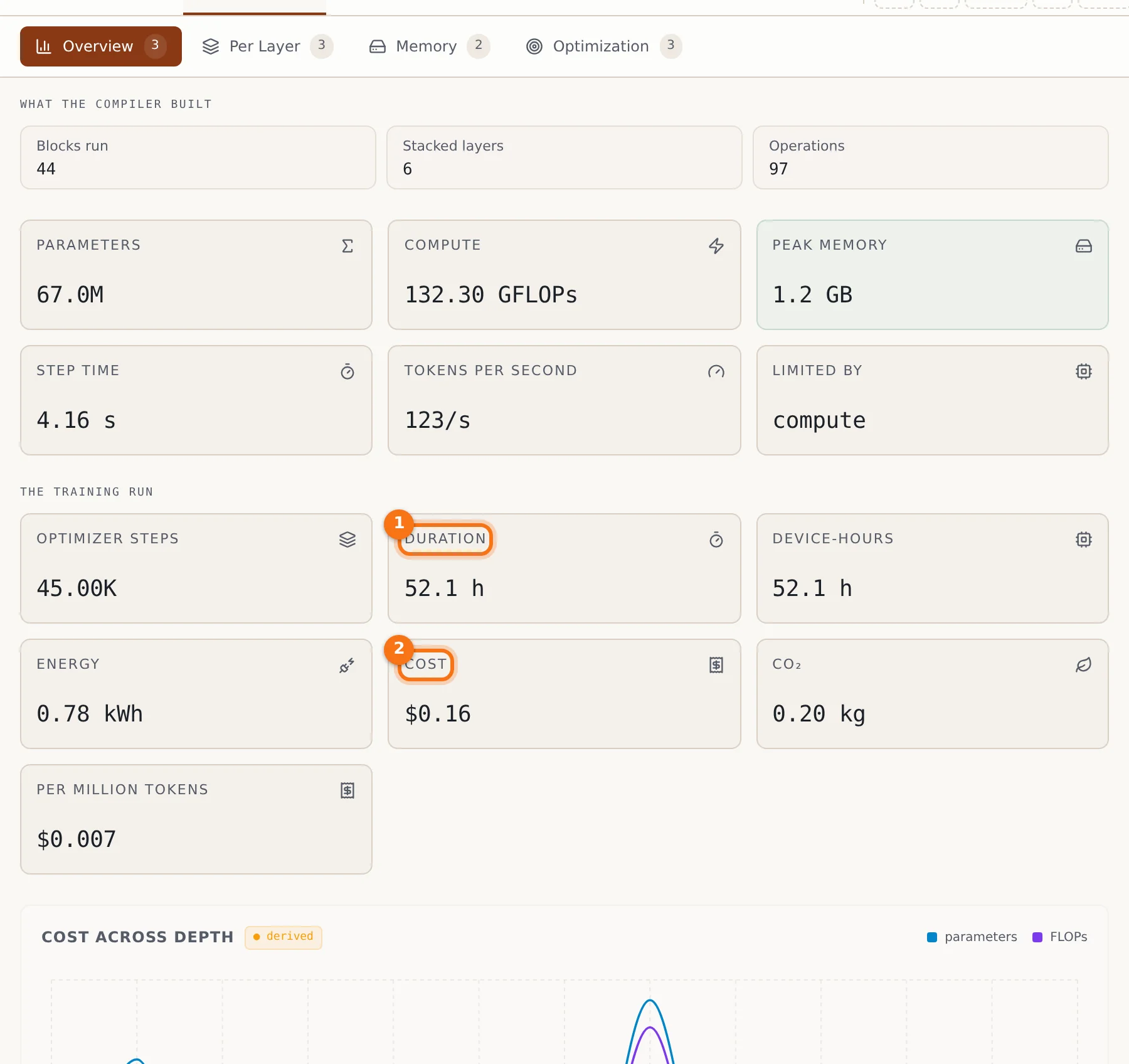

Simulation overview with the run duration and its cost marked — 1 — how long the run takes on this machine. 2 — what it costs, from the electricity price you gave.

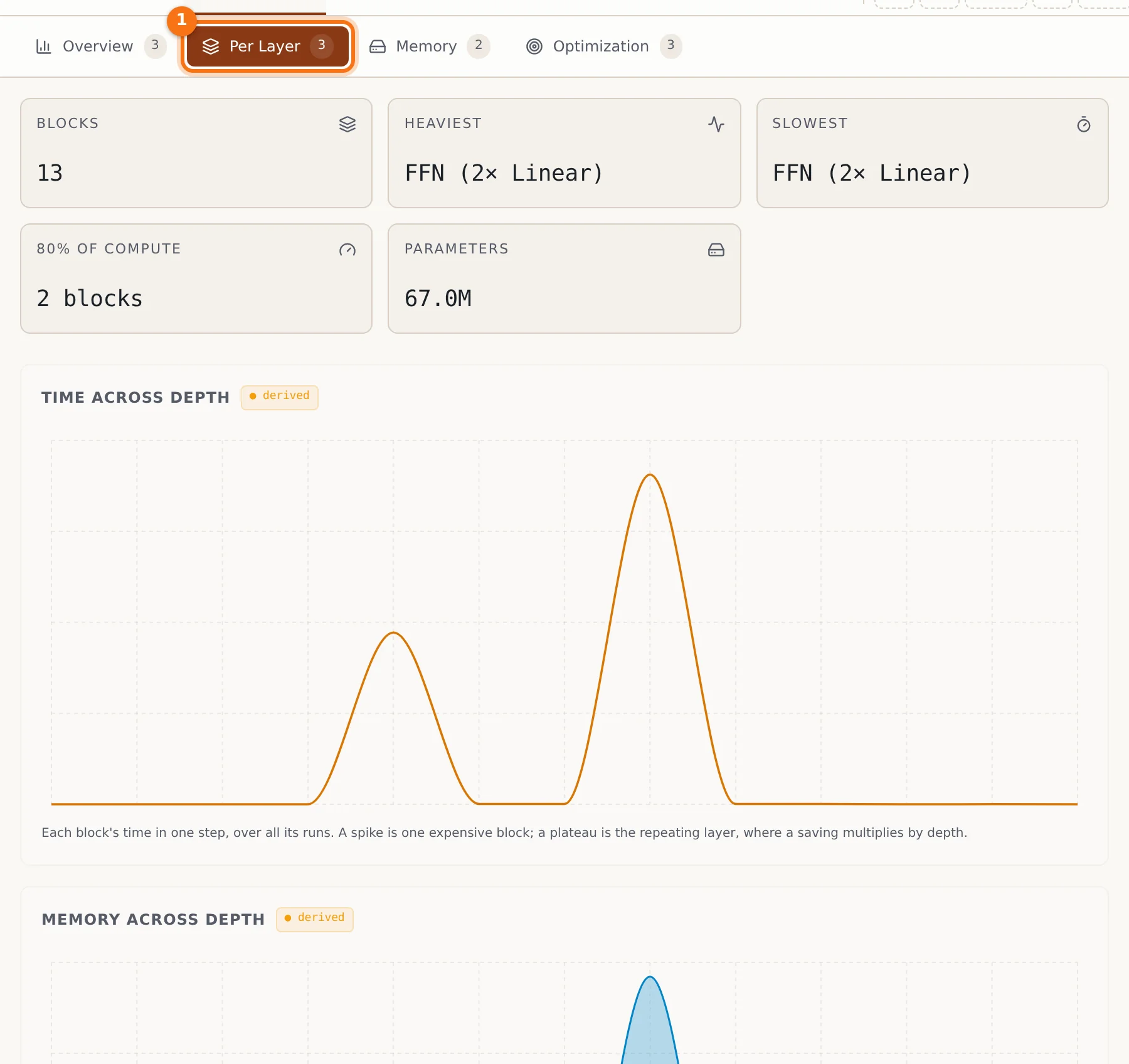

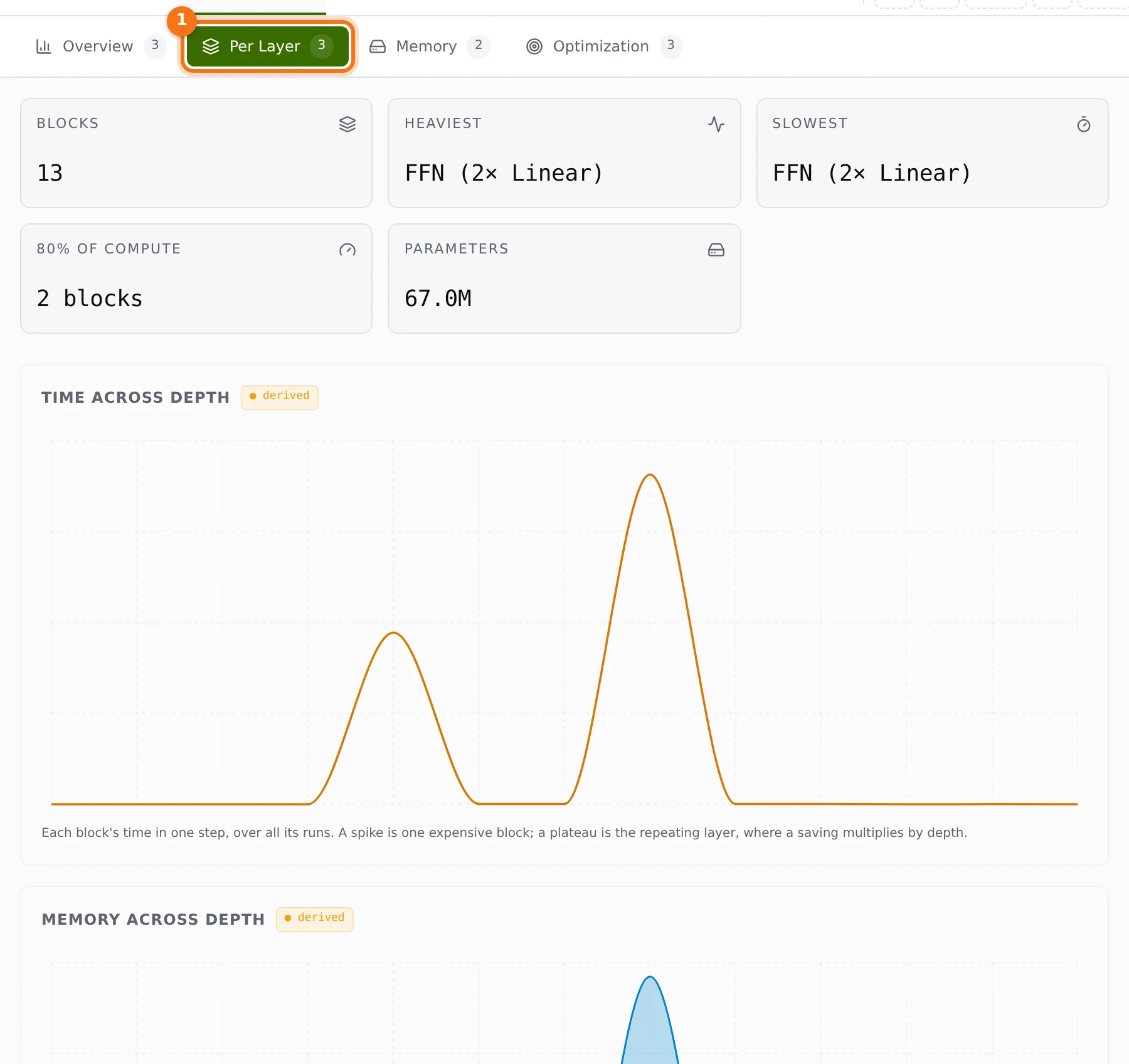

Simulation per layer, its tab marked — 1 — each block's share of the parameters and of the compute: where to cut first.

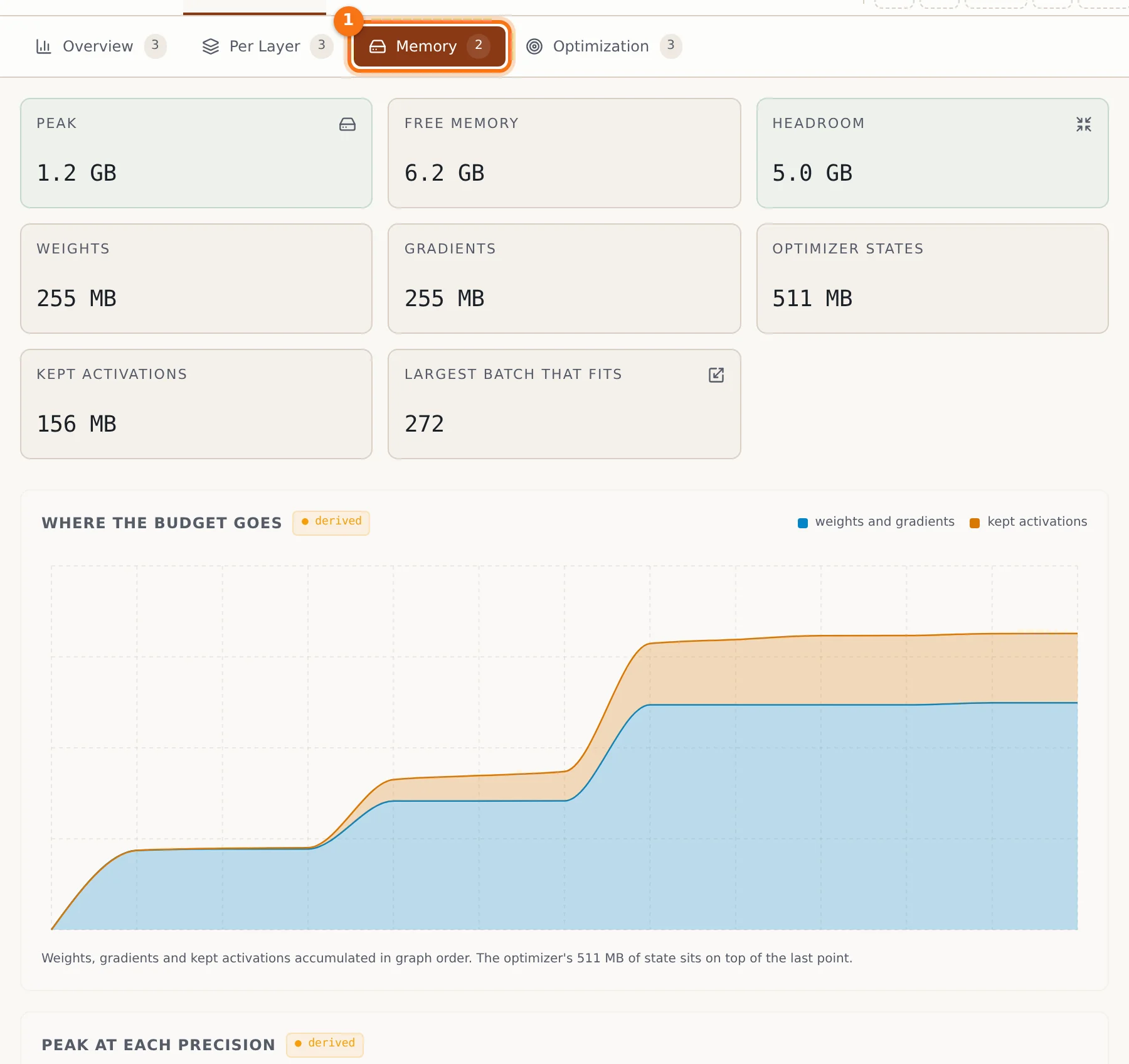

Simulation memory, its tab marked — 1 — weights, gradients, optimizer state and kept activations: whether one step fits.

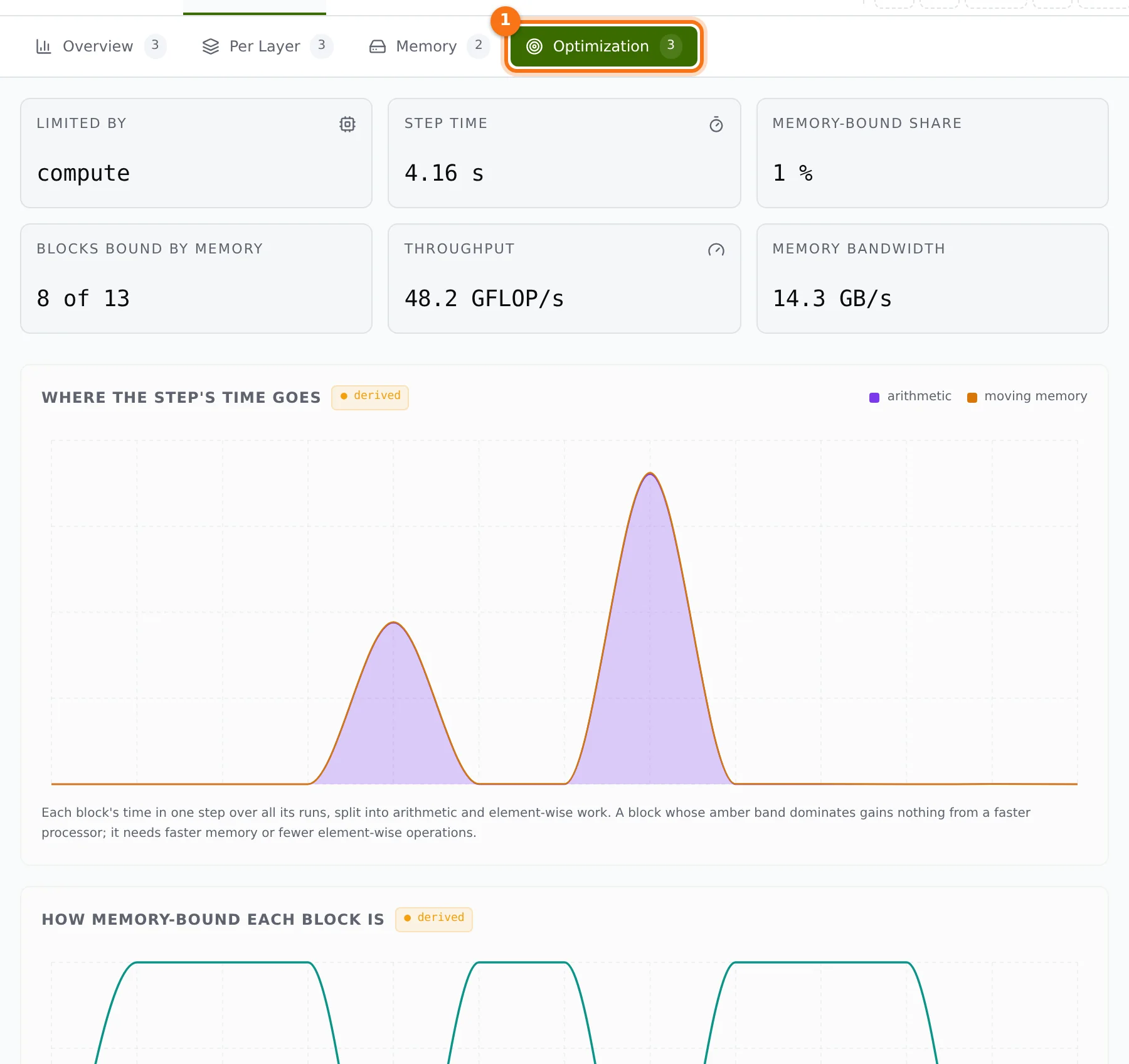

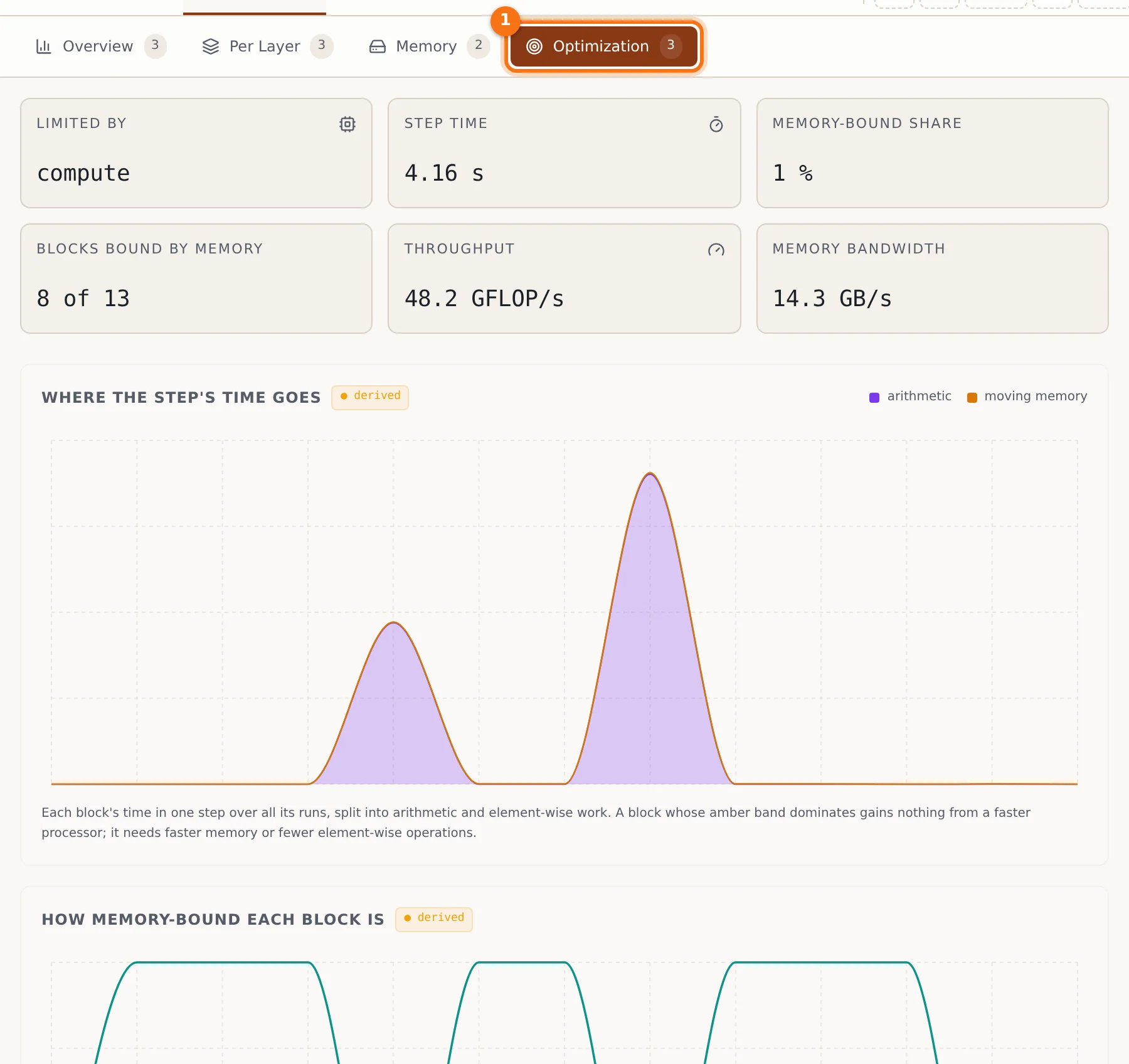

Simulation optimization, its tab marked — 1 — the same design in fp32, bf16, fp16: memory and step time side by side.
